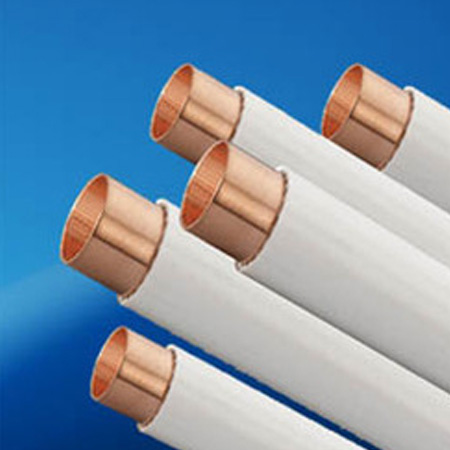

Plastic Coated Copper Tubes/Pipes

KB Industries offer our customers a wide range of high quality copper tubes that are designed to meet the needs of individual industrial applications.

Send Enquiry

Specification

Standard size (inch)

Standard	Copper Alloy No.	Chemical Composition		Mechanical Properties
Standard	Copper Alloy No.	CU%	p%	Temper	Tensile strength (Mpa)	Elongation(%)	Grain Size (mm)
ASTM B88	C11000	99.90	-	O60	O200	-	O0.040
	C11000	99.90	-	O50	O200	-	O0.025
	C12200	99.90	0.015 ~ 0.040	H58	O250	-	-
JIS H3300	C1100	99.90	0.015 ~ 0.040		O205	O40	-
				OL	245 ~ 325	-	-
				H	O265	-	-
	C1220	99.90	0.015 ~ 0.040	O	O205	O40	0.025 ~ 0.060
				OL	O205	O40	O0.040
				1/2H	245 ~ 325	-	-
				H	O255	-	-
ASTM B75	C11000	99.90	-	O60	O205	-	O0.040
	C11000	99.90	-	O50	O205	-	O0.040
	C12200	99.90	0.015 ~ 0.040	H58	O250	-	-
	C12200	99.90	0.015 ~ 0.040	H80	O310	-	-
EN 1057	-	99.90	0.015 ~ 0.040	R220	O220	O40	-
				R250	O250	O30 or 20	-
				R290	O290	O3	-
