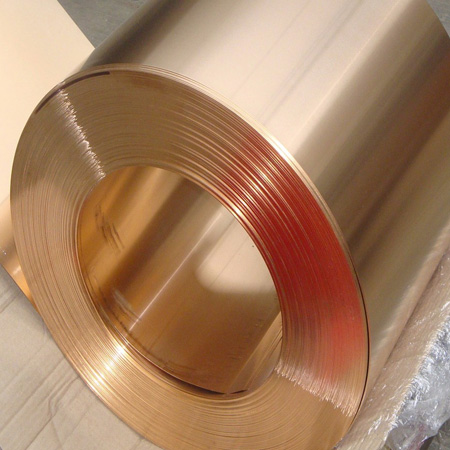

Copper Strips & Plates for Earthing System

Solid Copper Earth Rods
  • Copper Strips, Plates and Solid Rods are manufactured from highly conductive EC Grade Copper. They offer great resistance to corrosion. They are ideally used in applications where the salt content in the soil is very high.
  • Size: 16mm - 2Omm (length as per customer specifications).
Swaged Earth Rods (250 Microns)
  • Plain Swaged Earth Rods.
  • Tapered Swaged Earth Rods.

Especially developed for Australian market, available with driving head and coupling.

Driving Heads / Studs / Tips / Dowell Pins
  • Made from High Tensile Steel to ensure force from power hammer. Dowell Pins are also made from High Grade Brass.
  • Sizes: 1Omm, 14mm, 5/8", 3/4" etc.
Couplers
  • Material: Copper Alloy
  • Sizes: 14mm, 5/8", 3/4" etc.
Clamps
  • Material: Copper Alloy
  • Sizes: 14mm, 3/8", 5/8", 3/4" etc.
Air Terminal Base
  • Material: Body Casted from Brass
  • Application: Used as a base for fixing Air Terminal
Copper Bonded Earth Rods

They are manufactured from Structural Quality High Tensile Steel Grade 43A to BS 4360. These rods are molecularly bonded with pure EC Grade Copper (99.9%).

Dimensions Rod Size (Dia x Length) Actual Rod Dia "S" Thread Dia "T" Cat No.
9.5 x 1200 (Un-Threaded) 9.5 - HBR-012
9.5 x 1800 (Un-Threaded) 9.5 - HBR-018
14 x 1200 12 14 HBR-1412
14 x 1500 12 14 HBR-1415
14 x 1800 12 14 HBR-1418
14 x 2000 12 14 HBR-1420
14 x 2400 12 14 HBR-1424
5/8 x 4' OR 16mm x 1200 14.2 5/8" HBR-112
5/8 x 5' OR 16mm x 1500 14.2 5/8" HBR-115
5/8 x 6' OR 16mm x 1800 14.2 5/8" HBR-118
5/8 x 8' OR 16mm x 2400 14.2 5/8" HBR-124
5/8 x 10' OR 16mm x 3000 14.2 5/8" HBR-130
5/8 x 4' OR 16mm x 1200 14.2 5/8" HBR-312
5/8 x 5' OR 16mm x 1500 16 5/8" HBR-315
5/8 x 6' OR 16mm x 1800 16 5/8" HBR-318
3/4 x 4' OR 19mm x 1200 17.2 5/8" HBR-212
3/4 x 5' OR 19mm x 1500 17.2 3/4" HBR-215
3/4 x 6' OR 19mm x 1800 17.2 3/4" HBR-218
3/4 x 8' OR 19mm x 2400 17.2 3/4" HBR-224
3/4 x 10' OR 19mm x 3000 17.2 3/4" HBR-230
